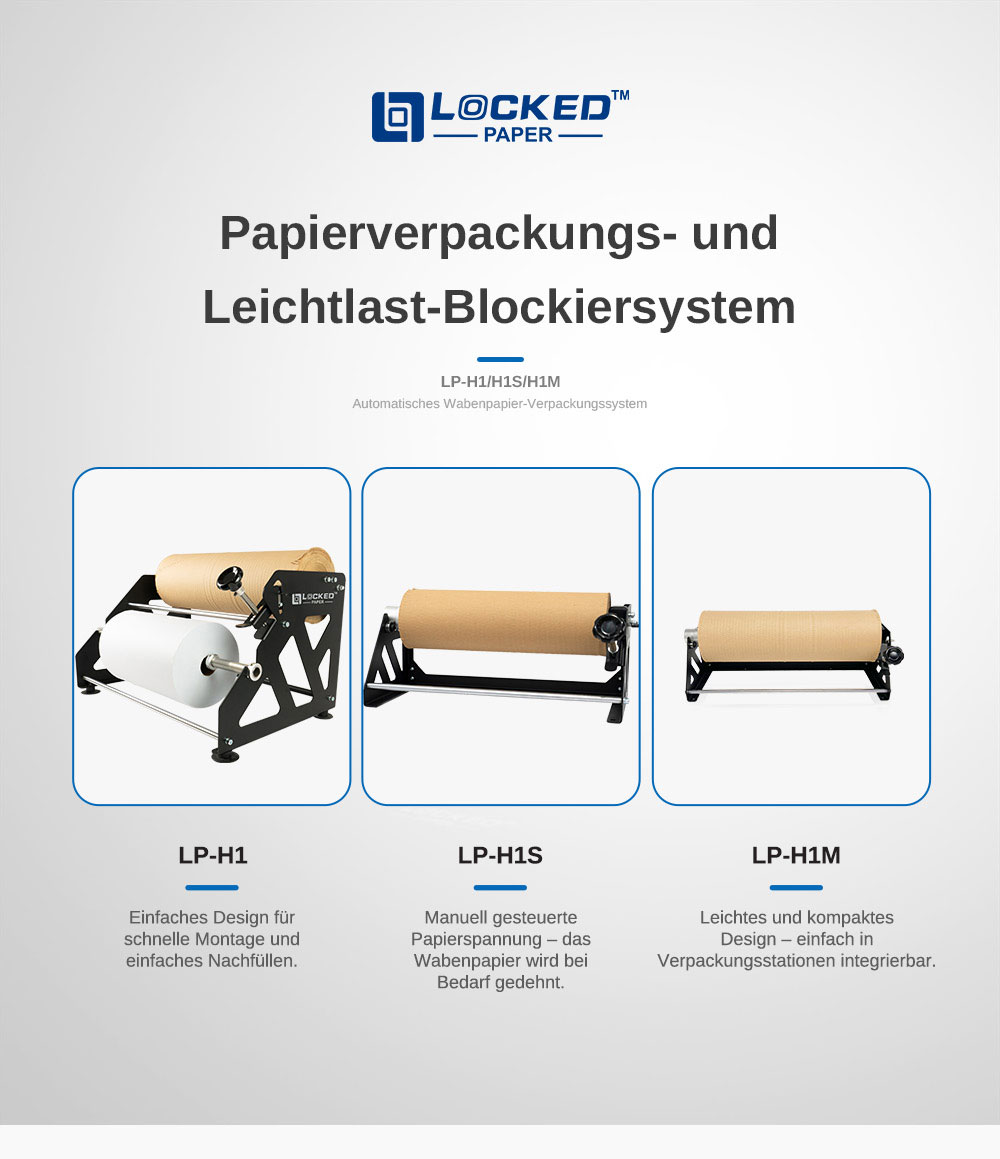

LockedPaper Hexcel Paper Wrap System LW-H1/H1S, ein Konverter durch Expandieren von gestanztem Kraftpapier in ein Wabenpapier mit 3D-Struktur. Sie sind mit geringem Platzbedarf konzipiert und können an jeder Packstation aufgestellt werden. Die einfache Struktur ist für die Bediener einfach zu bedienen. Darüber hinaus kann die Dehnungsfestigkeit des Papiers manuell gesteuert werden, ohne dass Strom benötigt wird.

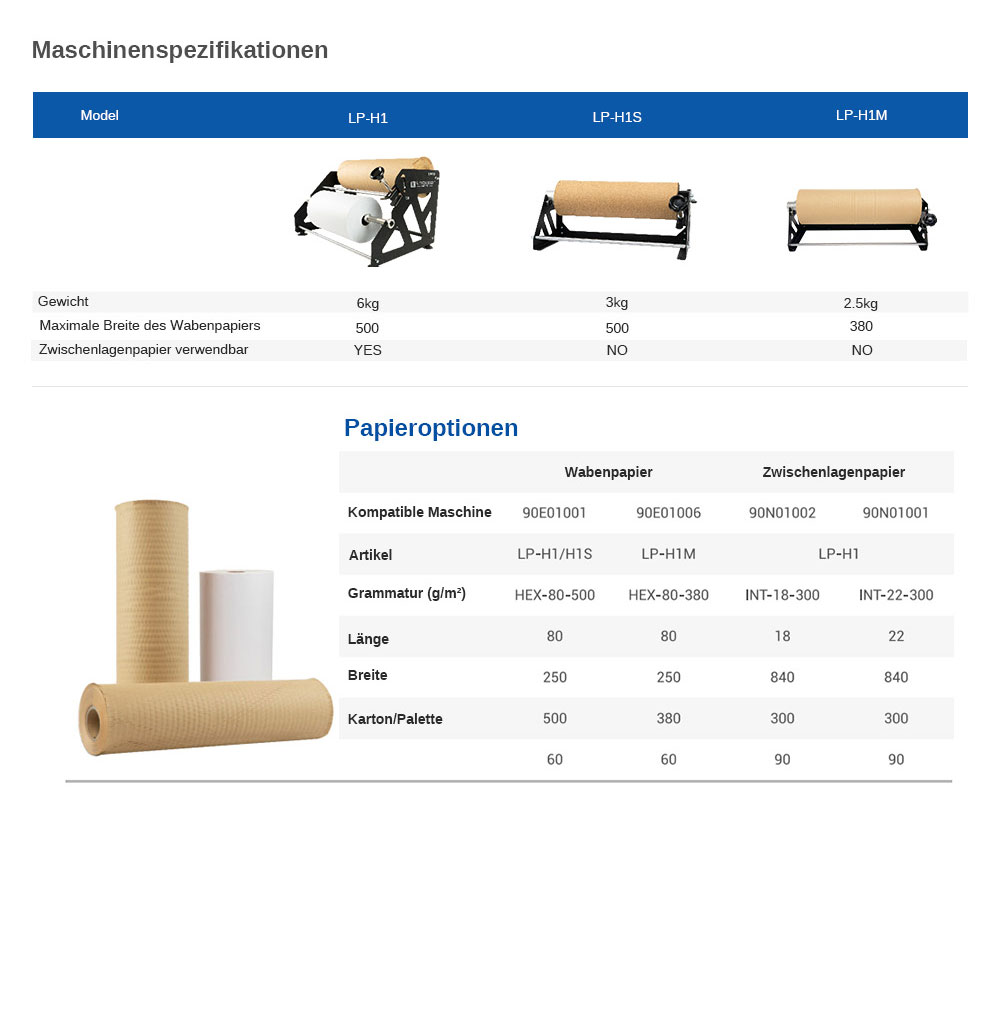

Machine Spec
| 1 | |
Machine gross weight | 10kg |

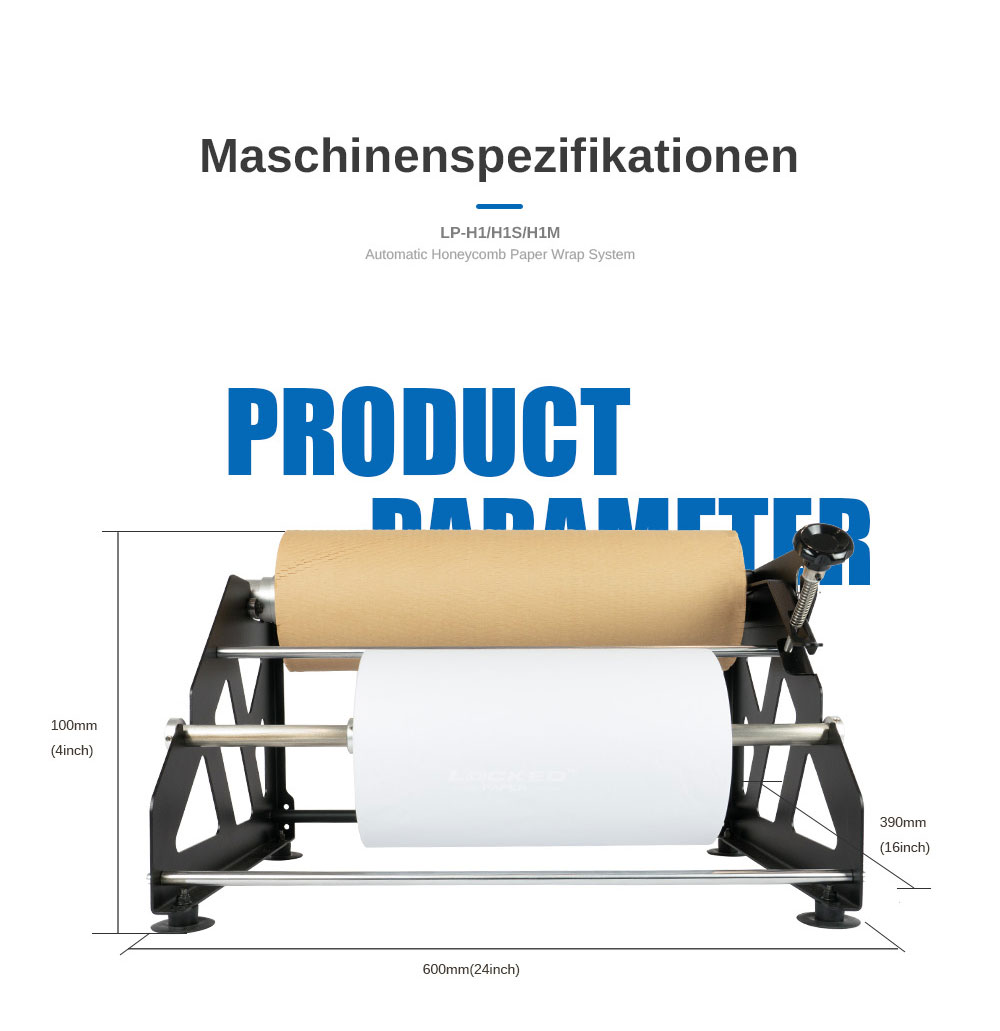

Machine size | 600*384*335mm |
Packing size | 600*400*100 |
Minimum diameter of hexcel roll core | 2inch ( 50.8mm ) |
Minimum diameter of interleaf roll core | 1.5inch (38.1 mm) |
Honeycomb paper
Length | 250m/roll |
Specification | 80gsm |
Width | 500mm |
Iinterleaf paper
Length | 840m/roll |
Specification | 20gsm |
Width | 300mm |
Features
Easy To Start
*Manual operation, no need of electricity
*Affordable design, low start up cost

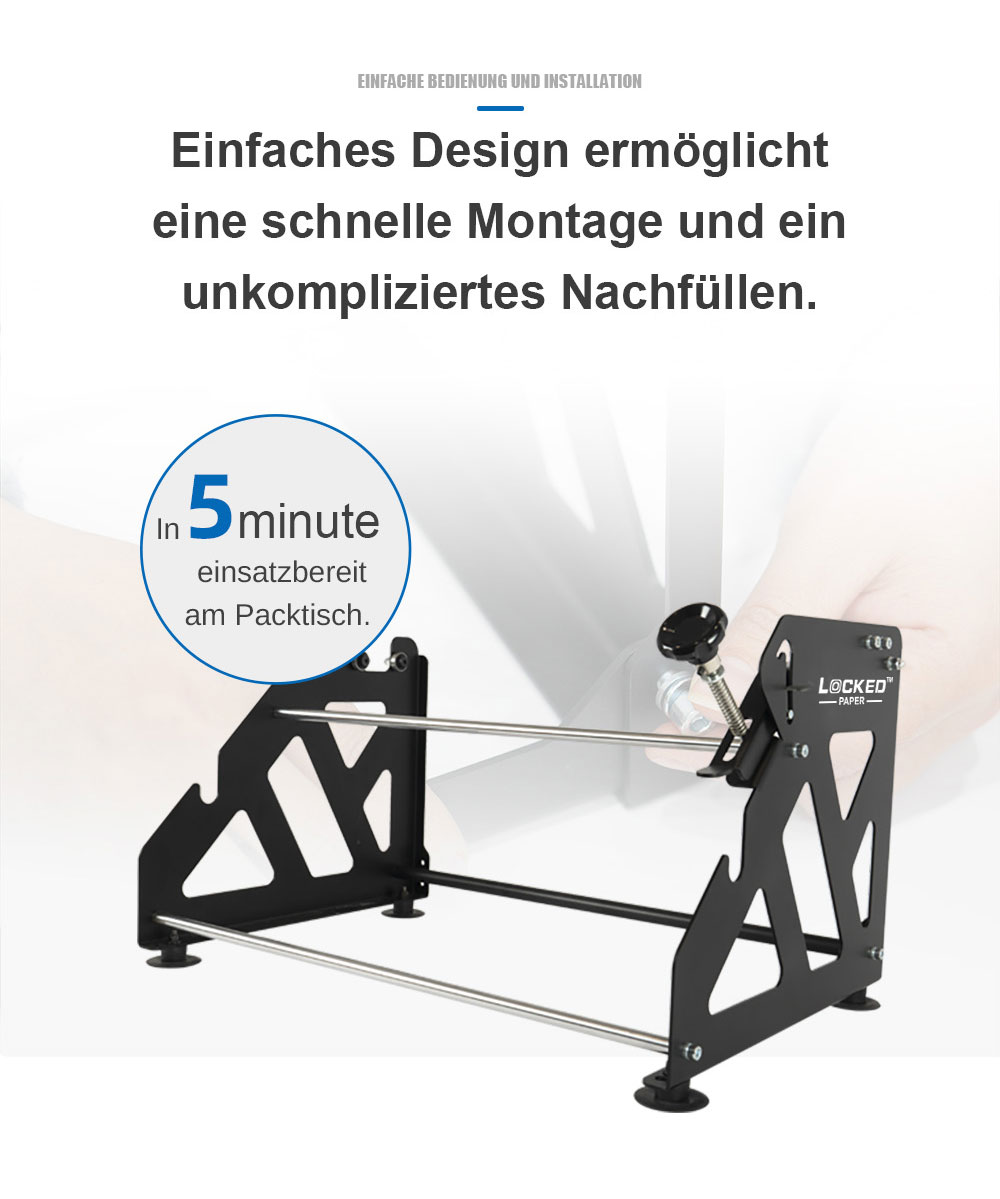

*Easy to set up, can set up the machine within 5 min.
Easy To Use
*Easy to load paper, even a child can load it within 25 seconds.
*Constant tension throughout the whole paper roll from big to small. No extra adjust is needed in the middle.
*Extremely small footprint to fit in anywhere.
High Quality Paper
*High tensile die cut paper, will not break even stretched for 4 times of its length
*Dust reduce process during paper converting
*Optional tissue interleaf paper, soft and quite, Protect product surface meanwhile enhance cushion result
Automatic dispenser: Cut with blade, Super eficiency
Manual dispenser: Work with Interleaf, Constant dispensing force
Single roll dispenser: Easy to load, Extremely small footprint
Easy operation
Easy to tear, no need to cut
Self stack, no need of tape
Expect 25%-50% faster packing
Save storage and cost
1 Roll of honeycomb paper can be unfolded to 20 roll of air bubble
It can be used in various applications, including packaging of furniture, electronics, automotive parts, and food items.
It can be used as a substitute for traditional wooden packaging, as it is lighter, easier to handle, and less expensive.
Its versatility makes it an ideal packaging solution for various industries.
