LockedPaper-C1 Papierpolstermaschine

Einführung Von LockedPaper-C1 Papierpolstermaschine

Papierpolstersystem zur Polsterung zerbrechlicher und schwerer Lasten.

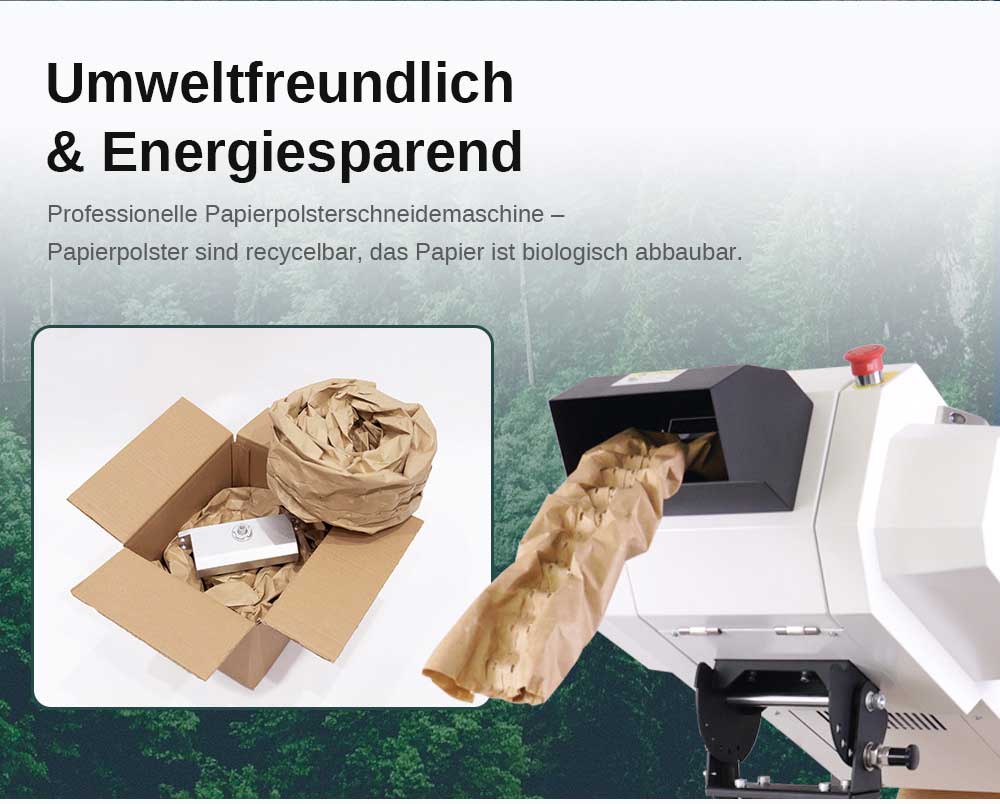

LockedPaper C1 ist ein kompaktes, intelligentes und schnelles Schutzpolstersystem. Es kann 2 Lagen Kraftpapier im Stapel in wenigen Sekunden direkt an der Packstation effizient in eine 3D-Kräuselform mit hoher Dichte umwandeln, und seine hohe Stoßdämpfung und Vibrationsfestigkeit können zerbrechliche und schwere Gegenstände während des Versands oder Transports sehr gut schützen. Es ist eine ideale Verpackungslösung für den Versand von Automatikteilen, Elektronik, feinem Porzellan und mehr.


Videos Von LockedPaper-C1 Papierpolstermaschine

Technische Daten Von LockedPaper-C1 Papierpolstermaschine

Machine



Feeding Speed

0.5m/s

Cutting Speed

80 times/min

Voltage

100-240V 50/60Hz

Net Weight

50kg

Power

350W

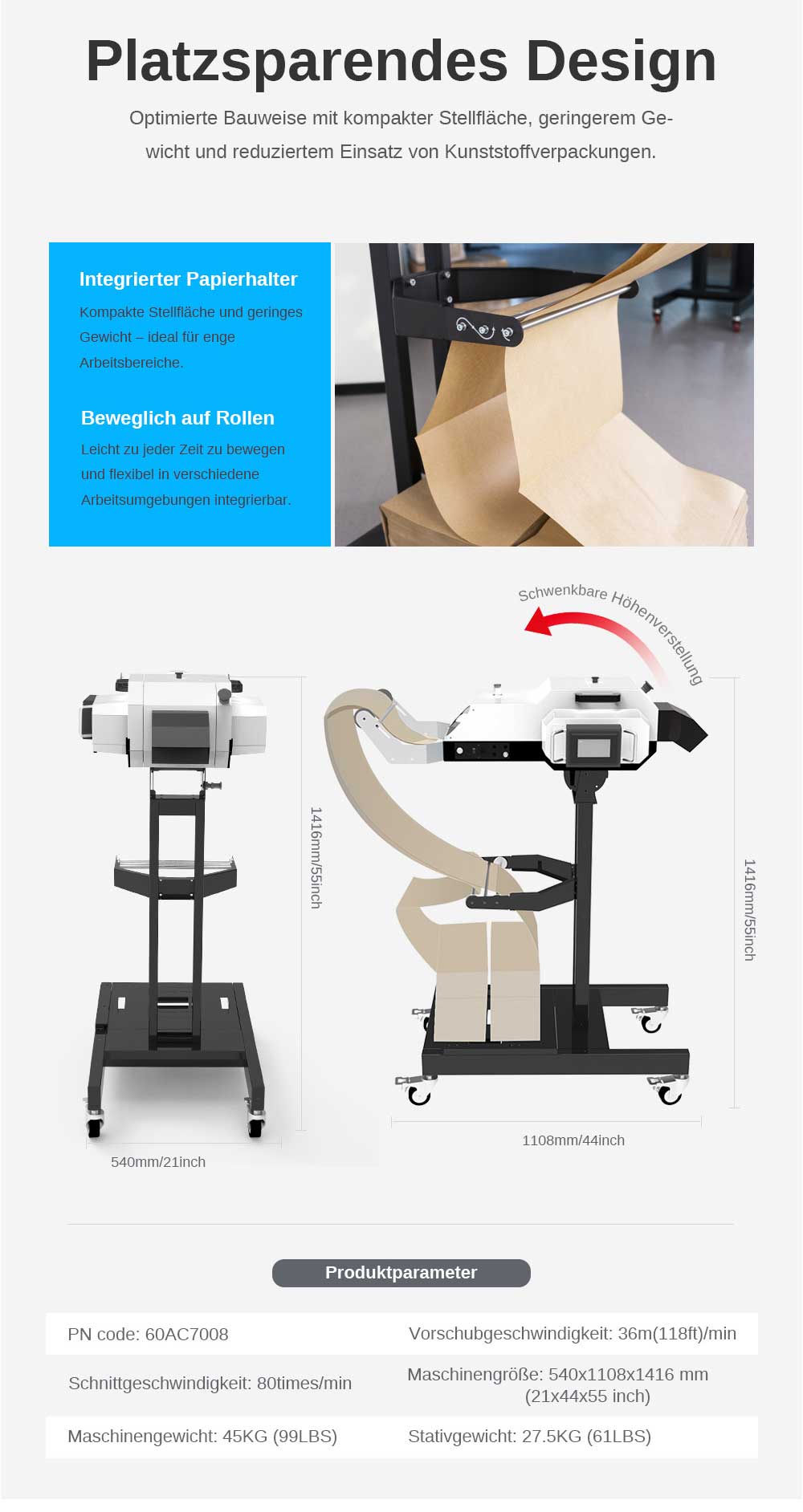

Machine size with stand (mm)

510(L)*600(W)*300(H)


Paper Options






PN

Basis Weight

Length

Width

Color

MPA707038

70/70gsm

360m

380mm

White/Kraft

MPA505038

50/50gsm

500m

380mm

White/Kraft

MPA705038

70/50gsm

360m/500m

380mm

White/Kraft

MPA900038

90gsm

500m

380mm

White/Kraft


Klicken Sie hier, um die detaillierten Spezifikationen anzuzeigen.

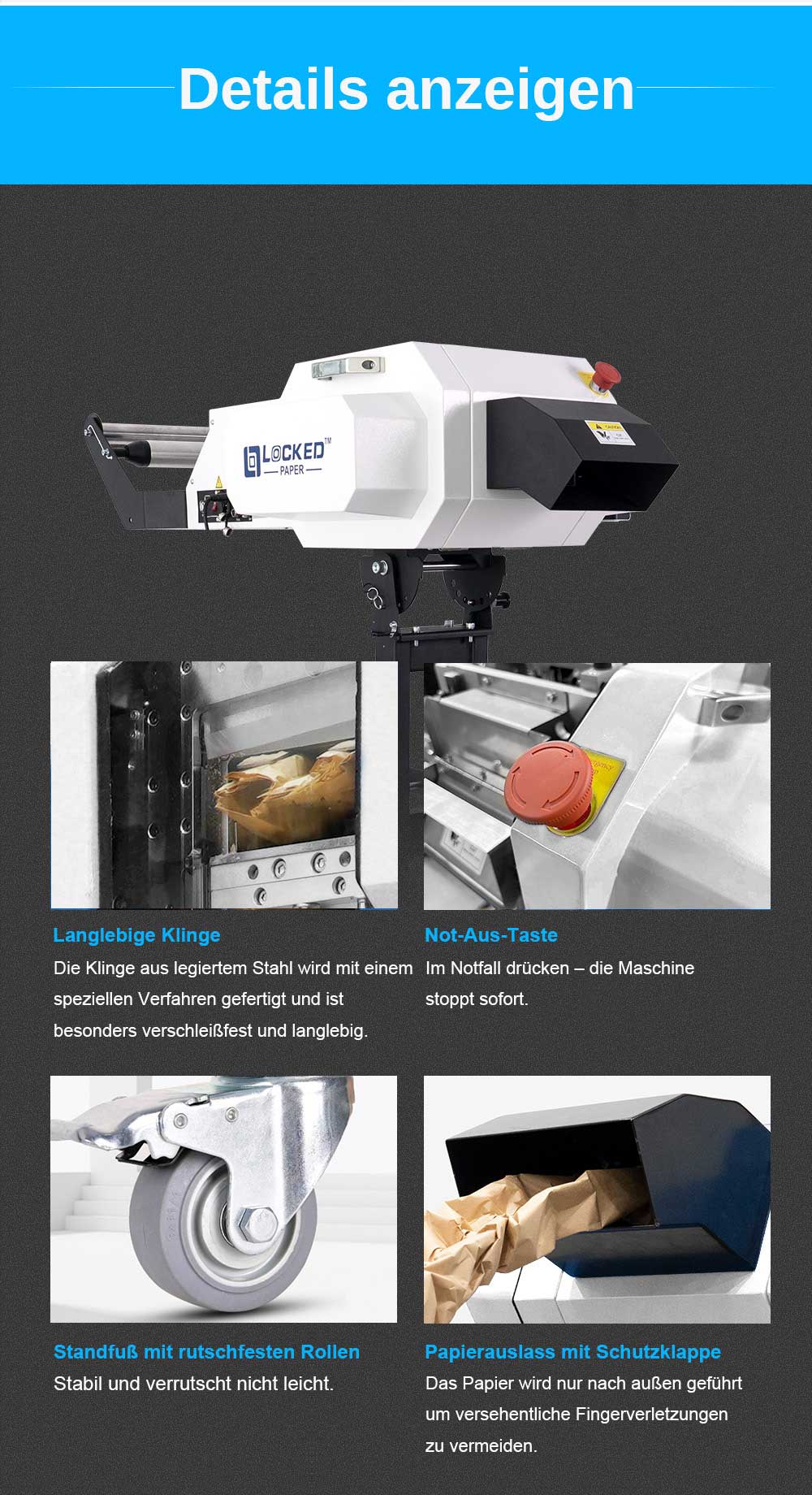

Details Von LockedPaper-C1 Papierpolstermaschine

Features

High performance for density and resilience

*3D structure with nailless stapling to provide robust cushioning

*High resilience with less paper, convert paper up to 70X of original volume compactible with automatic winder for easier use.



Reliability

*High speed blade with less cycle times

*Jamless design for longer run time between failure

*Modular design makes jam clearance and maintenance very easy



Safe and Easy To Use

*Safety design with CE certificate, all hazard area isolated with safety lockouts

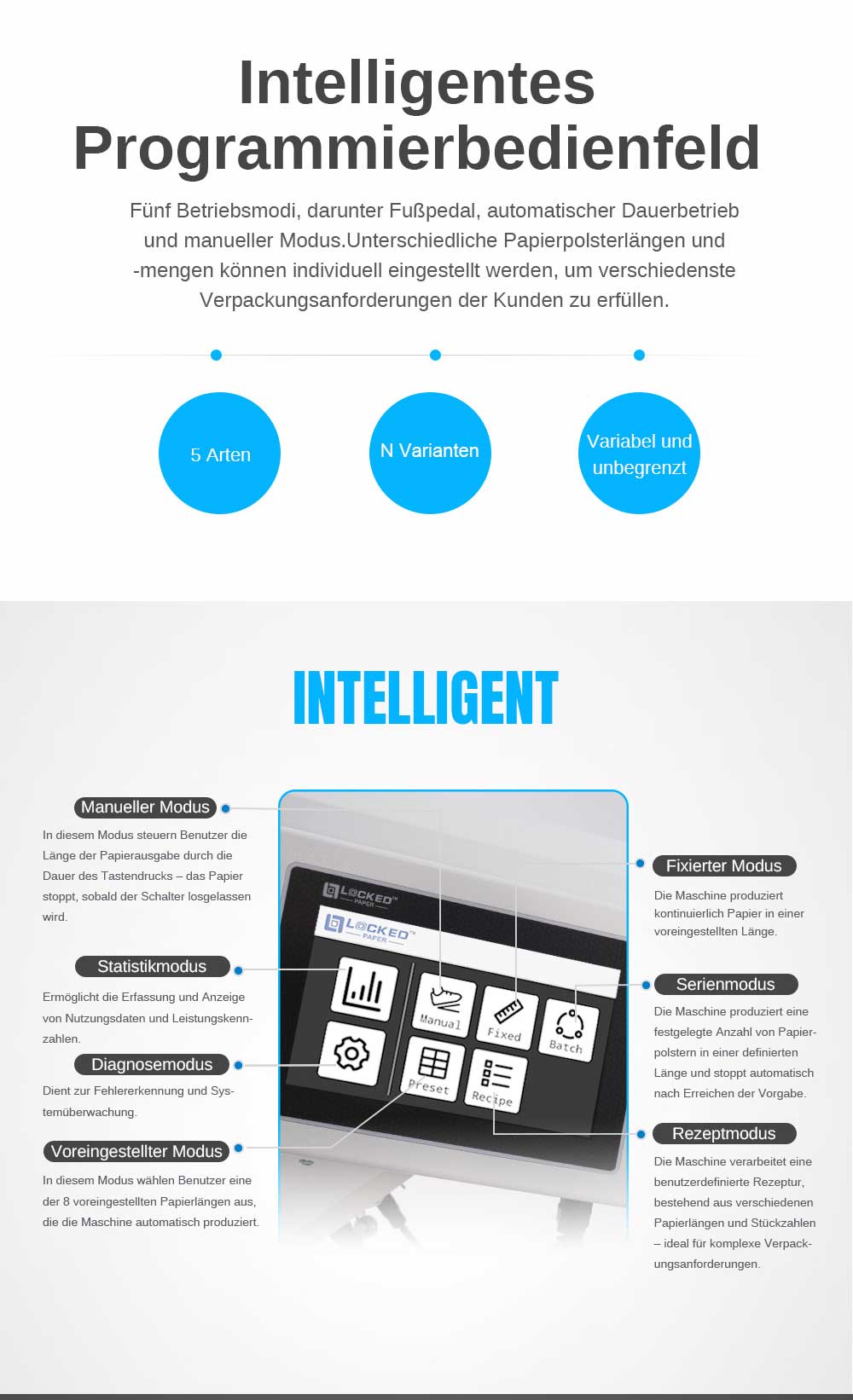

*Programmable HMI provides powerful and easier control of machine, 7 working modes for your choice

*No need to open cover to load paper, load and go within 30 seconds.



Lockedpaper C1 Paper Cushion Machine Advantages

1. Multi Operations: Portable HMI panel, programmable work mode with pedal;

2. Compact design: Smaller footprint and light weight than Ranpak;

3. Fast: High speed shooter 30m/min;

4. Safe: Machine stops working when open its cover;

5. Intelligent: Paper shortage and jam alarm.



Benefits:

Multi operations: Meet various kind of application;

Compact design: Space saving, easy to integrate into workplace;

Fast: Save time to fill same carton.


Spotlights:

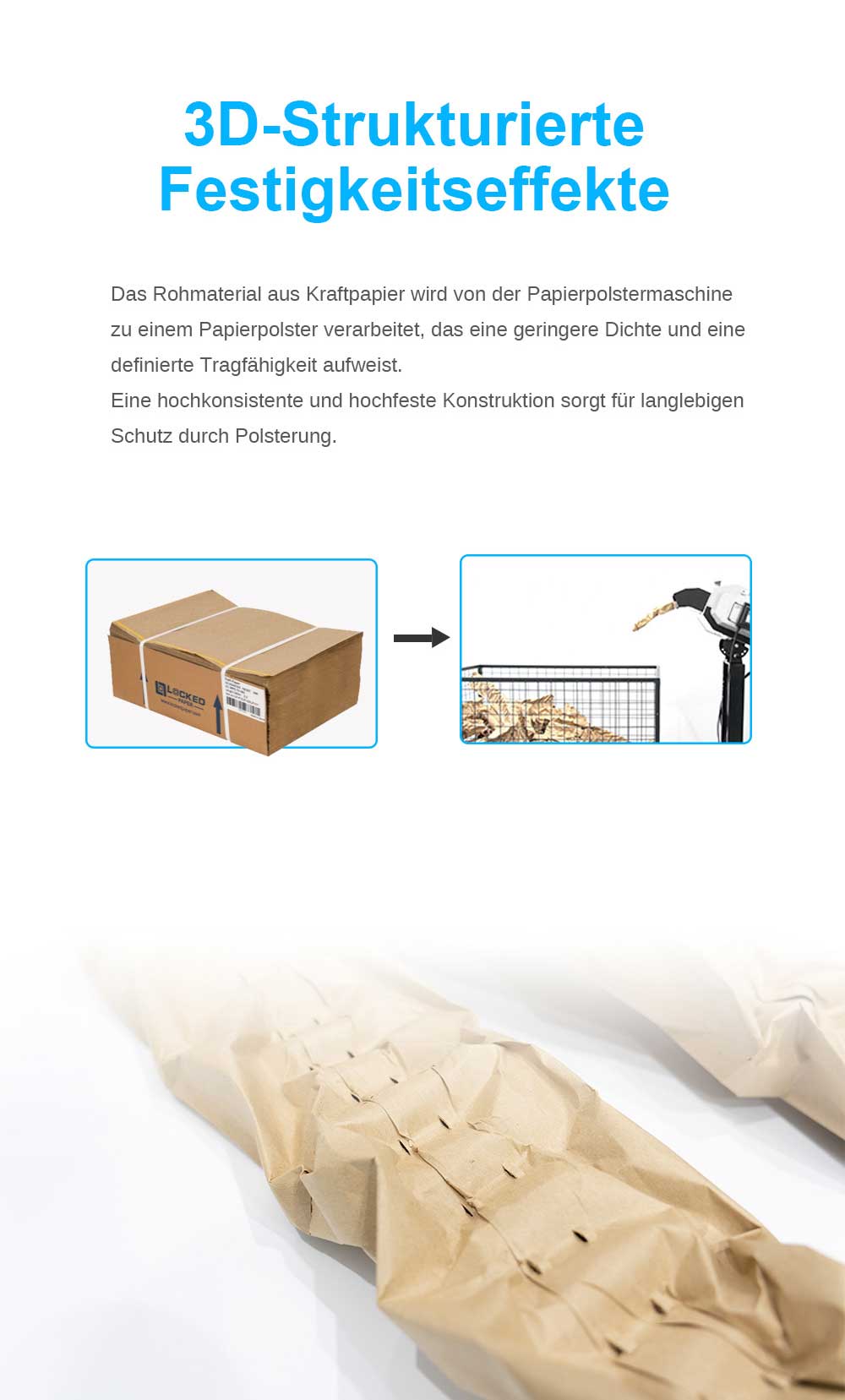

1. 3D strength structure, firm kitting/nails;

Benefits: High consistancy and high strength structure for long lasting cushioning.






2. Fast paper loading within 20s, No need to open cover;

Benefits: Increase operation efficiency.



3. High expansion ratio for pad cushions

Benefits: High paper utilization, less cost for same cushioning.

Lockedpaper C1 Paper Cushion Machine Applications

Cushioned paper cushions are suitable for a wide range of applications in the automotive parts, instrumentation, crafts and other industries.
